Senopex DOT A3 (DEMONSTRATION ITEM)
Code: 2620Related products
Product detailed description

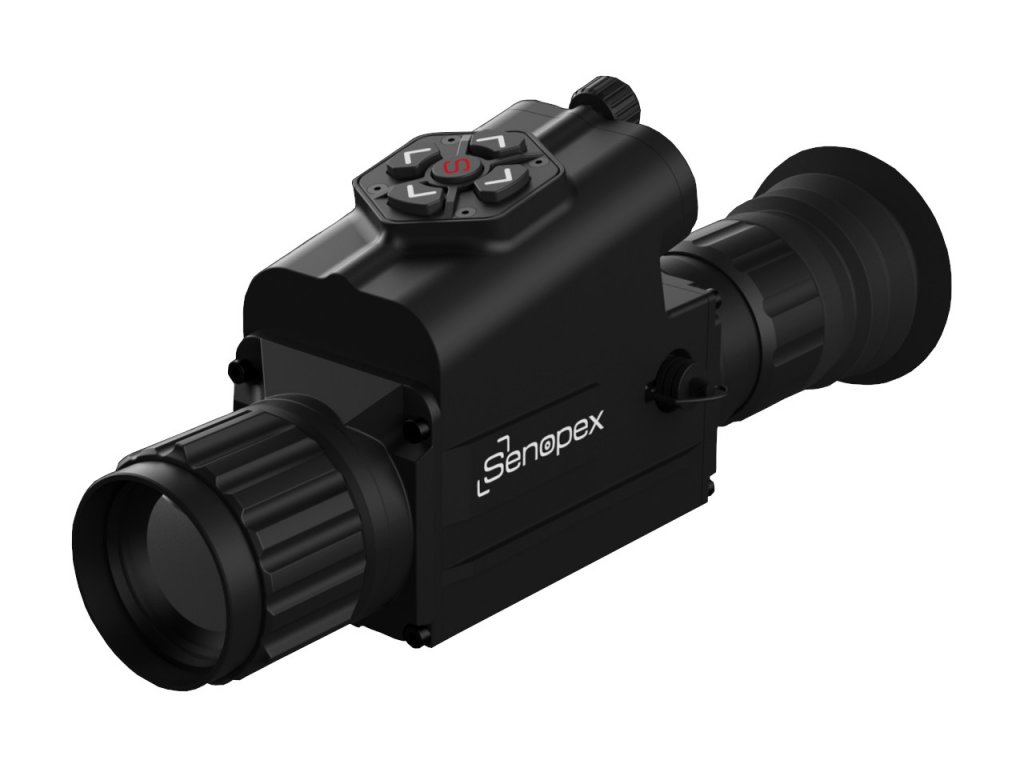

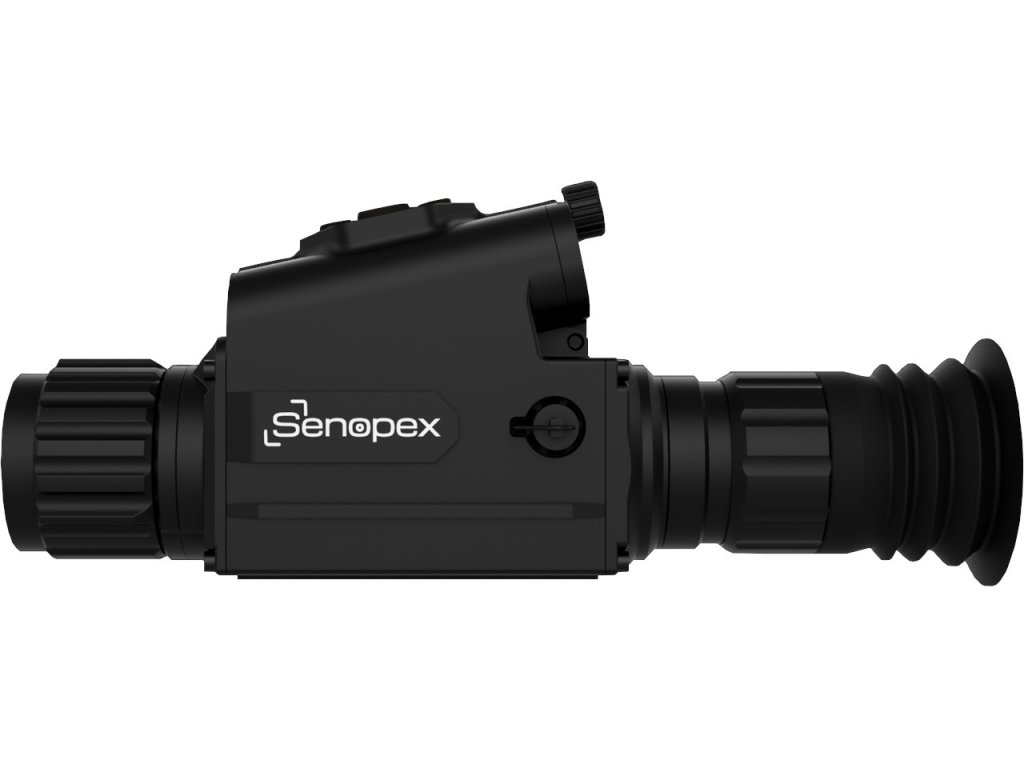

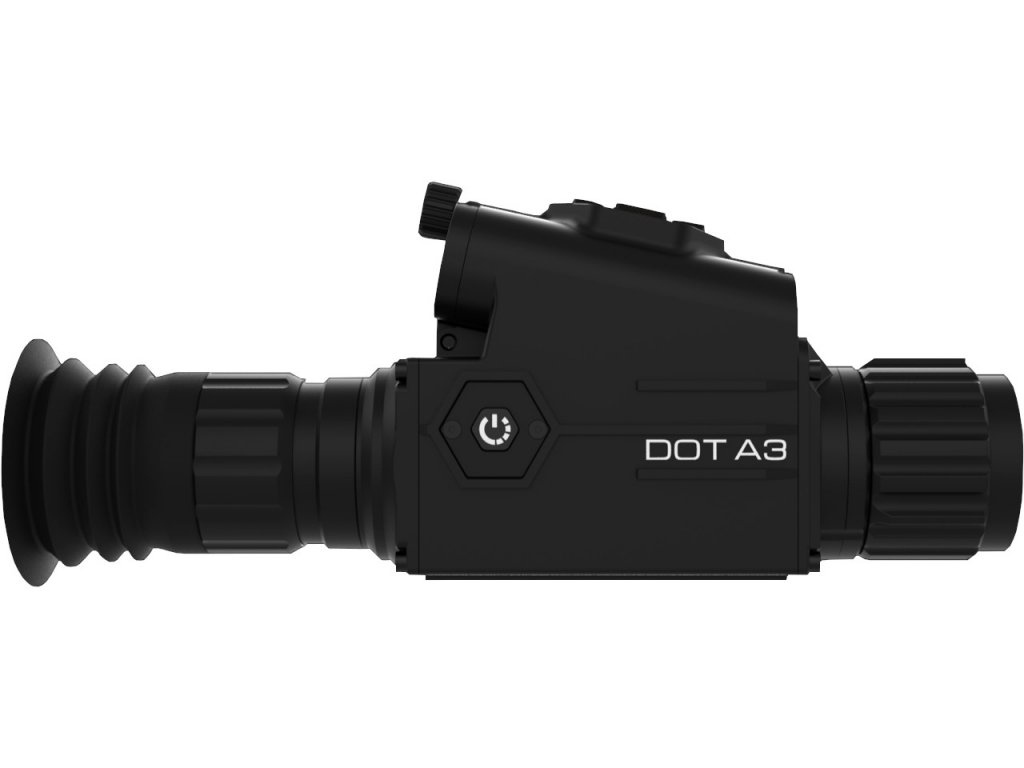

Thermal imaging sight Senopex A3
The Senopex A3 thermal imaging sight has a 384 × 288px resolution core with a sensitivity of < 35mk and a 1024 × 768px OLED display, a high-quality lens with a focal length of 35 mm. These parameters ensure a clear image in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest cover, etc. All of this supports your perfect target engagement when hunting or protecting property.
Algorithm to improve the observed target
The algorithm improves the highlighting of the target in the field of view. Ideal for fast detection of animals without the influence of other objects.
Obraz bez algoritmu Obraz s algoritmem
Different modes for all weather conditions
The"Detail" mode is designed to enhance the overall image quality and take the image detail to the next level of clarity.
"White" mode "Detail" mode
The"Assassin" mode is designed to improve the brightness and clarity of the target while eliminating the influence of irrelevant background factors. Ideal for quick detection and locating your target in seconds.
"White" Mode "Assassin" Mode
The"Equator" mode is designed to identify hot targets against a background of hot surfaces. Ideal for detecting multiple high temperature objects in hot weather. The "Equator" mode is extremely useful when the ground temperature is higher than the temperature of the targets you are observing.
"White" mode "Equator" mode
The"Edge" mode is designed to protect your vision in total darkness. "Edge" mode displays only a fraction of the light of a warm object, which is displayed in white to reduce night blindness from the screen. "Edge" mode allows users to stay on target for longer with less eyestrain and a visible profile.
the ballistic-style"customizable cross" is present both on the main display screen and in PIP mode.
"PIP (Picture in Picture)" allows you to see your target at the top of the screen, so you can see what you're aiming at even with digital magnification.
A catalog with a detailed description of the device crosses Senopex can be found here:
(Click on the image to view the catalogue)
Specifications:
| Detector resolution | 384*288, 12um |
| Spectral range | 8~14um |
| NETD | < 35mk (at 25°C, F# = 1.0) |
| Frequency | 50Hz |
| Lens | 35 mm + manual focus |
| Optical magnification | 3.5x |
| Digital magnification | 1x, 2x, 4x, 8x |
| Field of vision | 7.5° × 5.6° |
| Vehicle detection* | 4400 m |
| Human detection* | 1700 m |
| Display | OLED, 1024 × 768 |
| Pallets | White/Detail/Assassin/Equator/Black/Edge/Red/Iron |
| Exit eyepiece diameter | 45 mm |
| Number of cross types | 7 (= up to 7 weapons fired) |
| Video recording option | YES |
| Possibility to take photos | YES |
| Contrast adjustment option | YES |
| Brightness adjustment option | YES |
| Storage | Built-in Micro SD memory module (Max 32 GB) |
| Power supply | Two 18650 batteries |
| Battery operating time | ≥14h |
| Ports | 7-pin connector --> USB-A |
| Working temperature | -40°C~55°C (<22F~131°F) |
| protection level | IP67 |
| Dimensions (L x W x H) | 236 x 53 x 80 mm |
| Weight | < 0.65 kg |

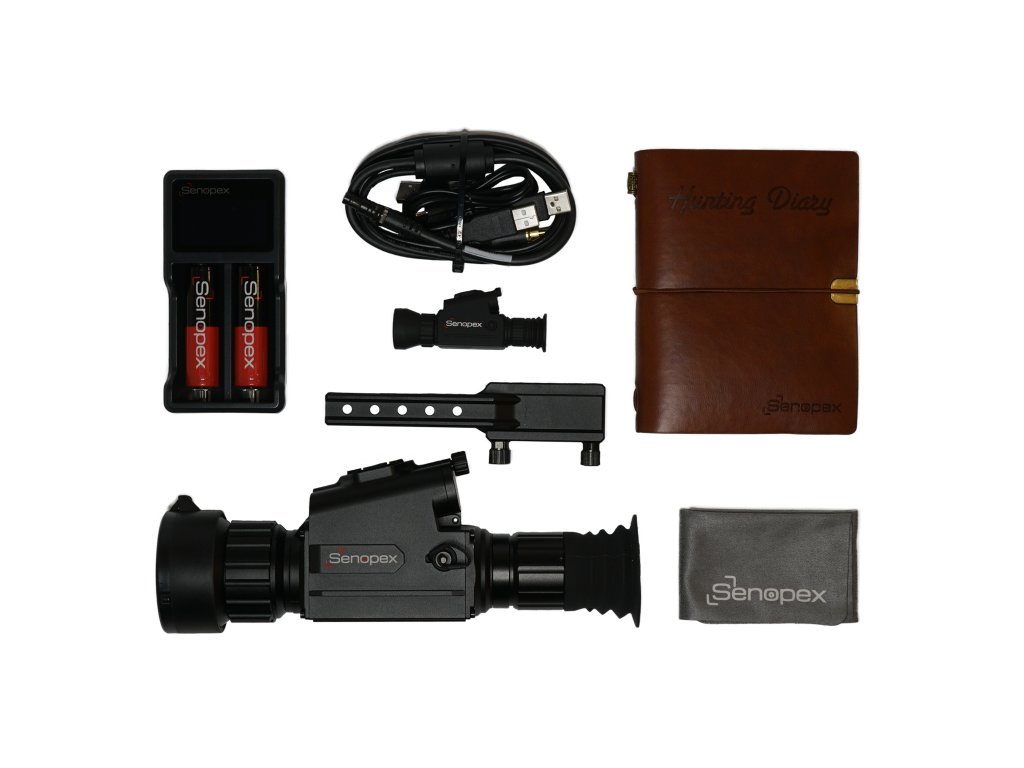

Package contents:
- Thermal imaging sight Senopex A3
- Warranty card
- 2x 18650 batteries
- Charger
- Weaver mount
- 7-pin cable
- Cleaning cloth
- Stylish USB shaped sight

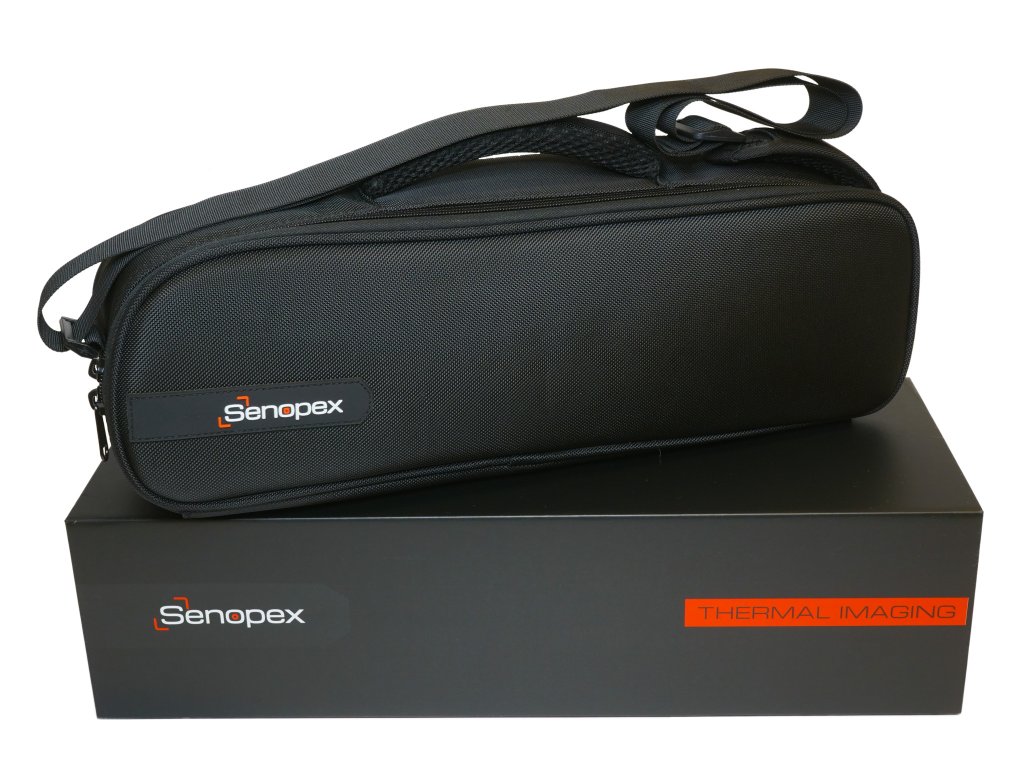

- Portable case
- Czech user manual
Additional parameters
| Category: | Thermal imaging |
|---|---|
| Warranty: | 1 year |
| Wi-Fi: | Yes |
| Sensor: | 384 x 288 px |
| Display resolution: | 1024 × 768 px |
| NETD: | 35 mK |
| Optical magnification: | 3.5x |
| Lens: | 35 mm |
| Detection (m): | 1700 |
| Video resolution: | 1024 x 768 px |
| Battery operating time (hours): | 14 |
| Weight (g): | 650 |
